Description
|

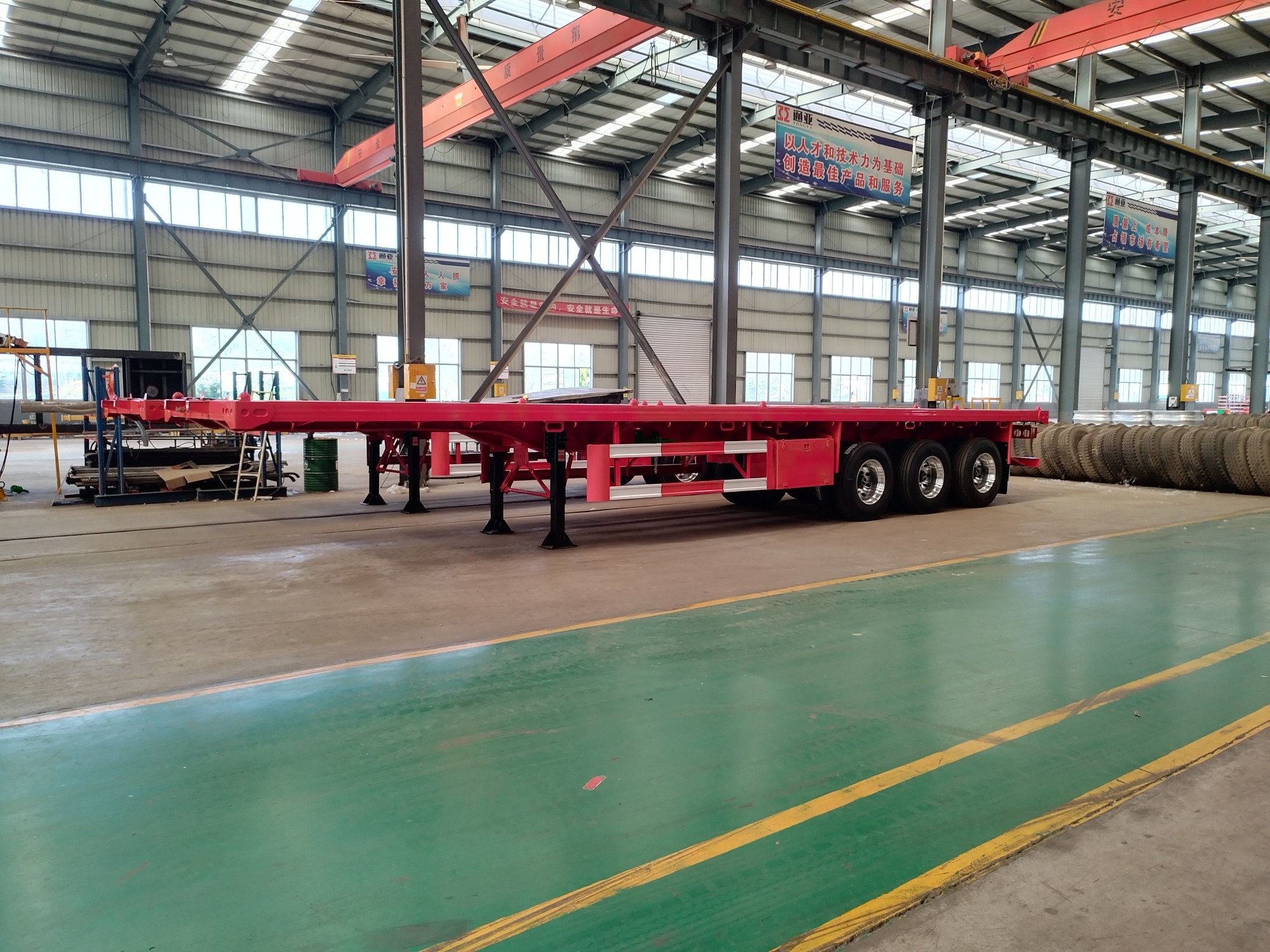

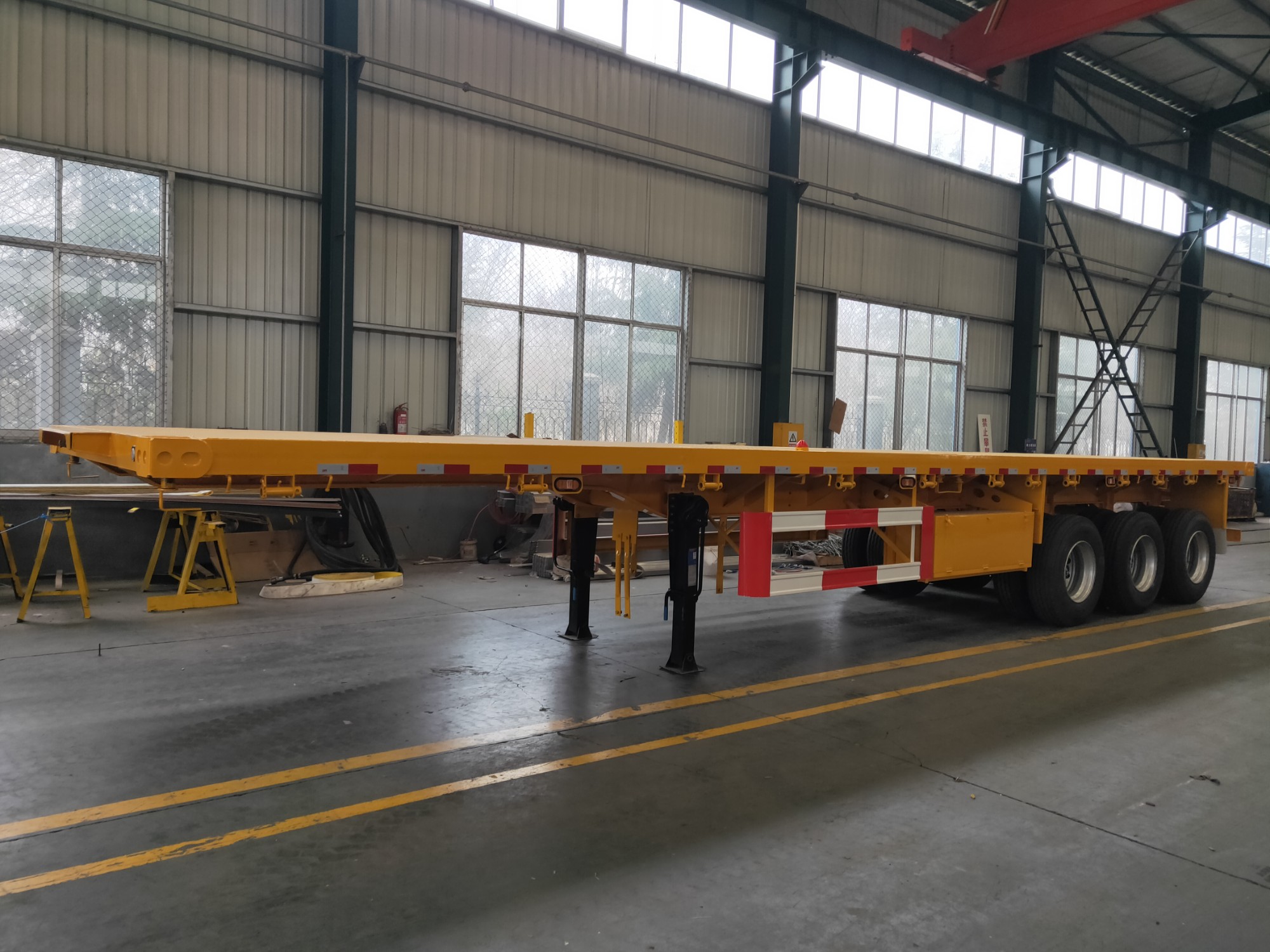

3 axle flatbed trailer
|
||||
|
Dimension |
Length |
12000mm |
Related Load |
40000KG |
|
|
Width |
2550mm |
Max. Payload |
70T for one 40ft container |
|
|
Height |
1560mm |
Tare Weight |
7000KG |
|
Chasis |
Main Beam |
Q345 steel 500mm upper plate14mm middle plate 8mm / bottom 16mm |
Floor |
3mm checkered plate |
|
|
Cross Beam |
10# channel beam |
Boundary Beam |
16# channel beam |
|
|
Axle |
13T FUWA/BPW 3nos |
Drum |
Hub piloted cast steel |
|
|
Suspension |
Mechanical suspension |
Leaf Spring |
10nos 90mmx13mm |
|
|
Tire |
12R22.5 12nos |
Wheel |
9.0-22.5 12nos |
|
|
Landing Gear |
TONGYI |
Traction Pin |
2”/3.5” |
|
Accessories |
Brake System |
SEALCO, 6 double chamber |
Tool Box |
1 set |
|
|
Electrical |
24V 7 ways |
Lamp |
LED |
|
|
Spare Wheel Carrier |
2 |
Others |
12 twist locks |
|
Painting |
Sand blasted, anti-rust chassis surface is available with 1 layer, of anti-corrosive primer and 2 layers of top coats. |
|||
