Description
|

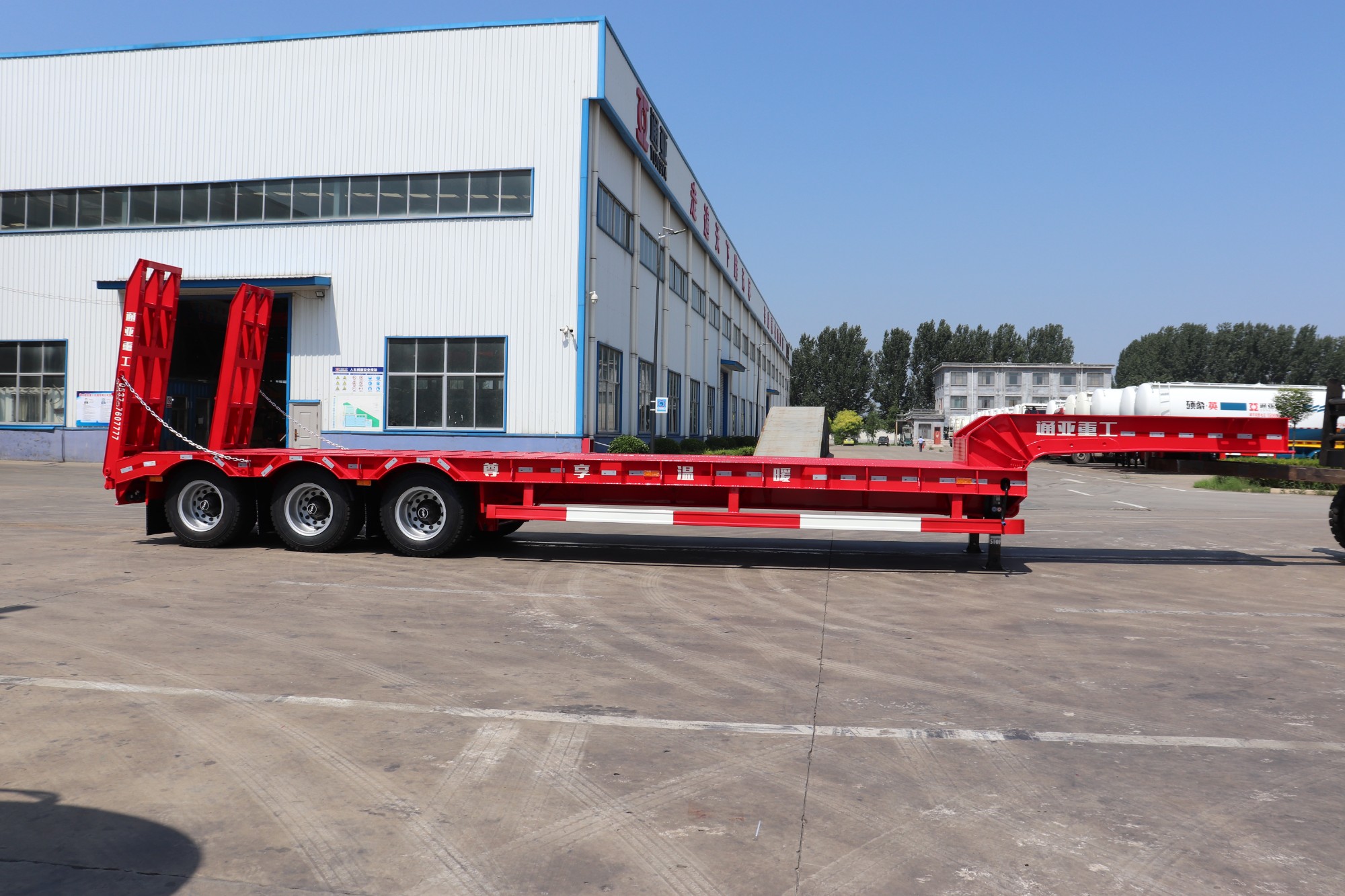

3 axle lowbed trailer LBT119 |
||||
|
Dimension |
Length |
13000mm |
Related Load |
60000KG |
|
|
Width |
2800mm |
Max. Payload |
|
|
|
Height |
1710mm |
Tare Weight |
10500KG |
|
Chasis |
Main Beam |
Q345 steel 500mm upper plate20mm middle plate 12mm / bottom 20mm |
Floor |
2.5mm checkered plate |
|
|
Cross Beam |
10# channel beam |
Boundary Beam |
25# channel beam |
|
|
Axle |
13T FUWA/BPW 3nos |
Drum |
Hub piloted cast steel |
|
|
Suspension |
Mechanical suspension |
Leaf Spring |
10nos 90mmx13mm |
|
|
Tire |
10R20 12nos |
Wheel |
7.5-20 12nos |
|
|
Landing Gear |
JOST E100 |
Traction Pin |
JOST2”/3.5” |
|
Accessories |
Brake System |
WABCO valve, 6 double chamber |
Tool Box |
1 set |
|
|
Electrical |
24V 7 ways |
Lamp |
LED |
|
|
Spare Wheel Carrier |
2 |
Others |
|
|
Painting |
Sand blasted, anti-rust chassis surface is available with 1 layer, of anti-corrosive primer and 2 layers of top coats. |
|||
