Description
|

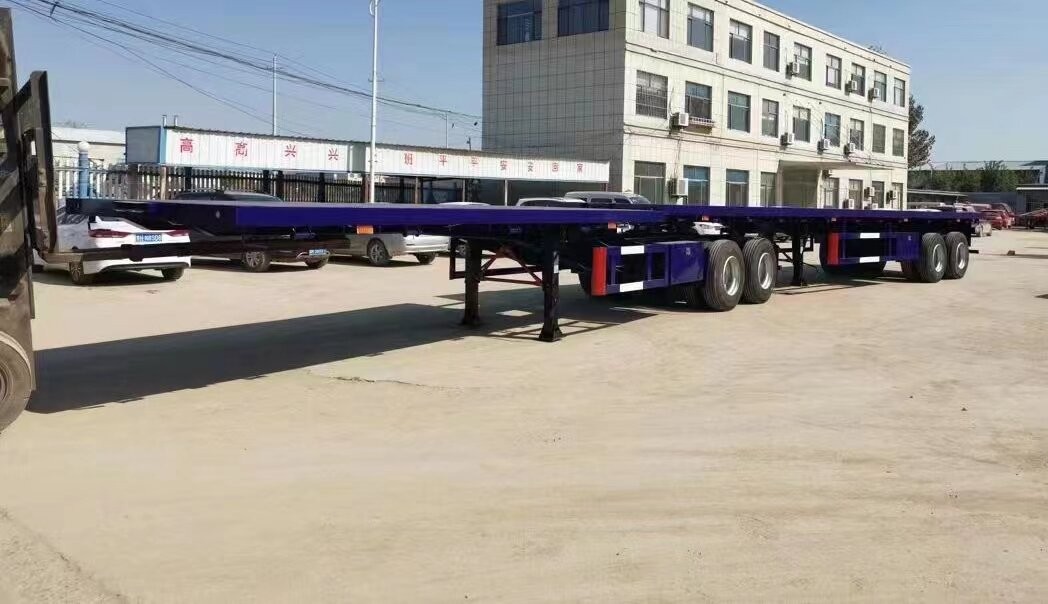

Train flatbed trailer FBT112 |
||||
|
Dimension |
Length |
6900mm |
Related Load |
70000KG |
|
|
Width |
2450mm |
Max. Payload |
|
|
|
Height |
1400mm |
Tare Weight |
10000KG |
|
Chasis |
Main Beam |
Q345 steel 500mm upper plate 14mm middle plate 8mm / bottom 16mm |
Floor |
3mm checkered plate |
|
|
Cross Beam |
10# channel beam |
Boundary Beam |
14# channel beam |
|
|
Axle |
13T FUWA/BPW 4nos |
Drum |
Hub piloted cast steel |
|
|
Suspension |
Mechanical suspension |
Leaf Spring |
10nos 90mmx13mm |
|
|
Tire |
11R22.5 16nos |
Wheel |
8.25-22.5 16nos |
|
|
Landing Gear |
JOST E100 |
Traction Pin |
JOST2”/3.5” |
|
Accessories |
Brake System |
WABCO valve, 12 double chamber |
Tool Box |
2 set |
|
|
Electrical |
24V 7 ways |
Lamp |
LED |
|
|
Spare Wheel Carrier |
4 |
Others |
No |
|
Painting |
Sand blasted, anti-rust chassis surface is available with 1 layer, of anti-corrosive primer and 2 layers of top coats. |
|||
