Description
|

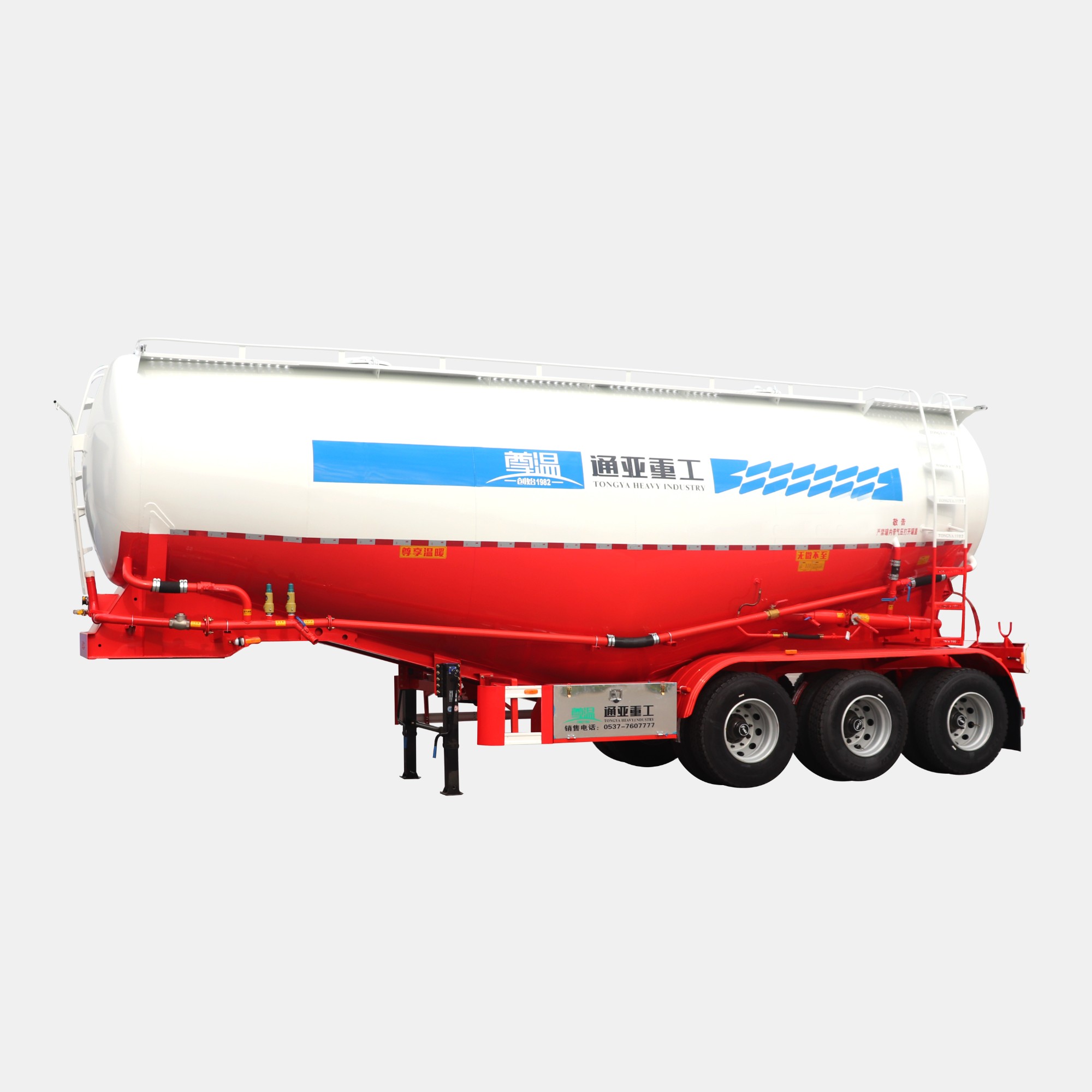

Flour bulk tank trailer BCT113 |
||||
|
Dimension |
Length |
11800mm |
Volume |
38CBM |
|
|
Width |
2550mm |
Related Load |
45000KG |
|
|
Height |
3870mm |
Tare Weight |
12500KG |
|
Tank body |
Tank body thickness |
Q345B steel 5mm, cylinder 6mm |
Compartment |
1 |
|
|
Manhole cover |
3pcs, 500mm diameter |
|
|
|
Chasis |
Main Beam |
Q345B steel 500mm |
Floor |
3mm checkered plate |
|
|
Axle |
13T FUWA/BPW 3nos |
Drum |
Hub piloted cast steel |
|
|
Suspension |
Mechanical suspension |
Leaf Spring |
10nos 90mmx13mm |
|
|
Tire |
12R22.5 12nos |
Wheel |
9.0-22.5 12nos |
|
|
Landing Gear |
JOST E100 |
Traction Pin |
JOST2”/3.5” |
|
Accessories |
Discharge valve |
4” disc valve |
Discharge pipe |
4” seamless steel tube |
|
|
Engine |
WECHAI diesel engine |
Air compressor |
BOHAI 10/12m³ |
|
|
Air charging system |
2” main hole; 2” check valve; 1.5 safe valve; 0.4Mpa gauge |
Quadratic blow |
1” diameter check valve |
|
|
Brake System |
WABCO valve, 6 double chamber |
Tool Box |
1 set |
|
|
Electrical |
24V 7 ways |
Lamp |
LED |
|
|
Spare Wheel Carrier |
2 |
Others |
|
|
Painting |
Sand blasted, anti-rust chassis surface is available with 1 layer, of anti-corrosive primer and 2 layers of top coats. |
|||
