Dump Truck Semi-Trailer - 副本

  • Payload: 20-50 cubic
  • Type: rear dumper/ side tipper
  • Axle:FUWA/ BPW 13T/14T/16T
  • Hydraulic ram:5TG-E200*6800
    • heavy duty dump semi-trailer
    Inquiry Send Email

    Description



    Products Description

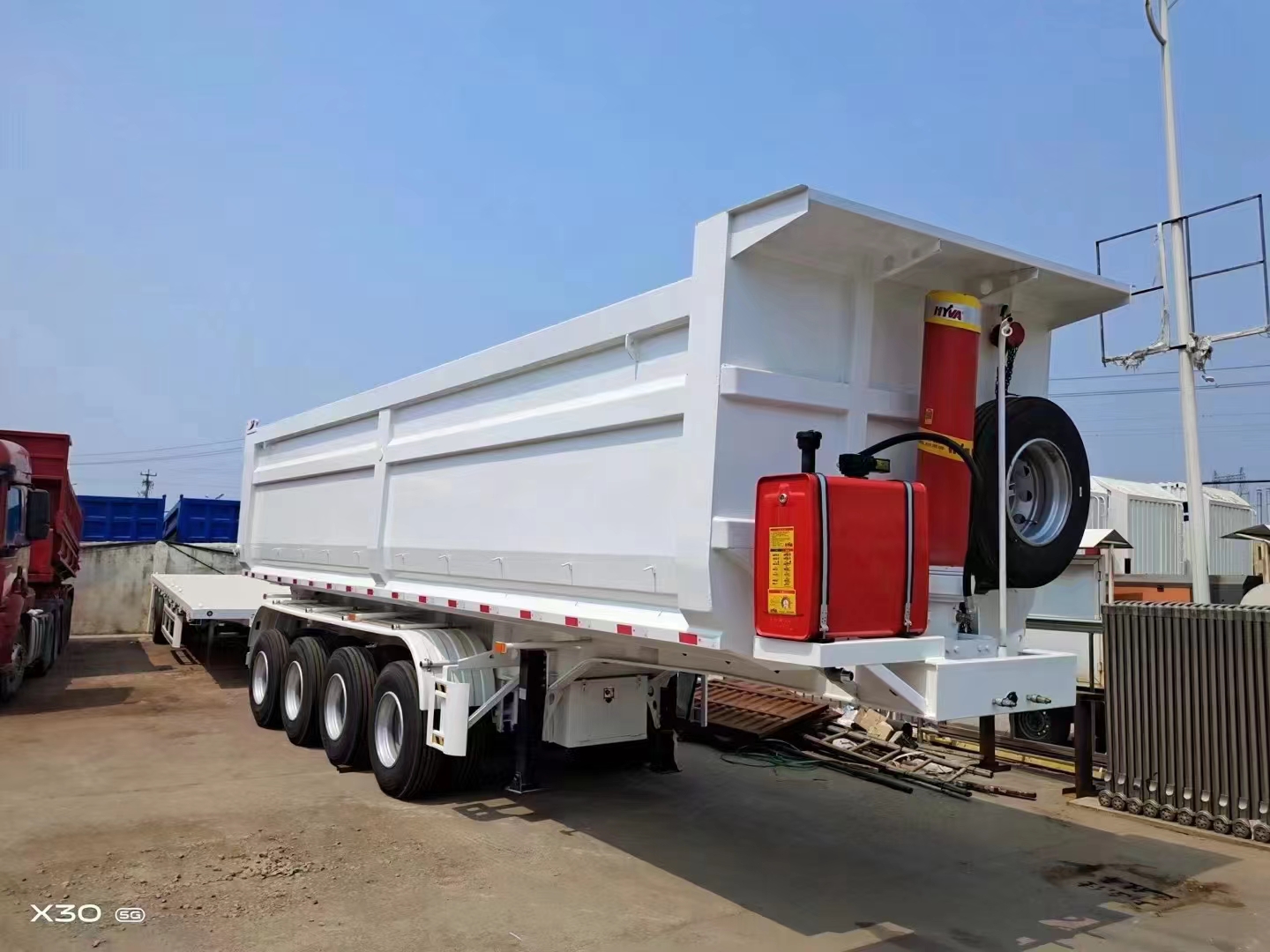

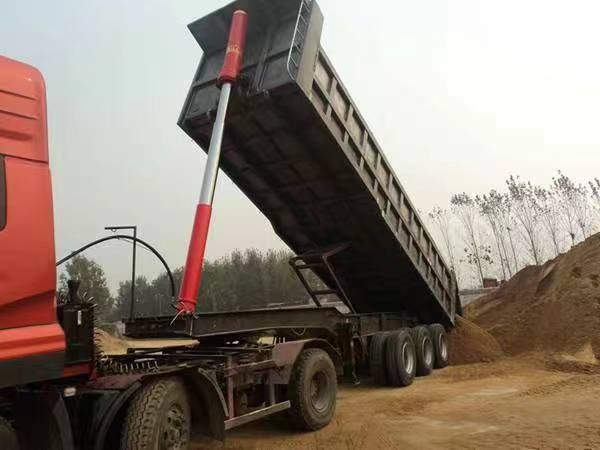

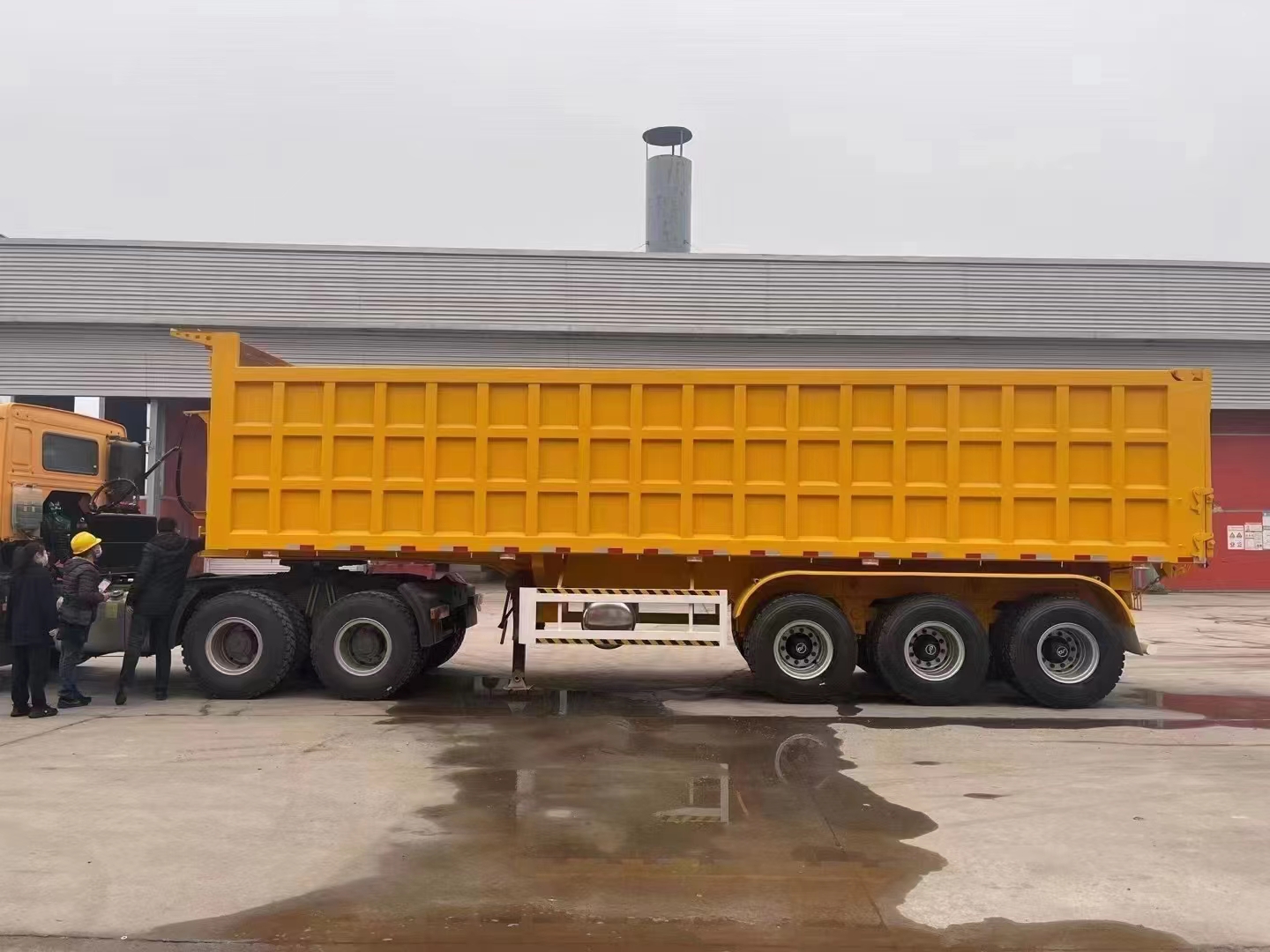

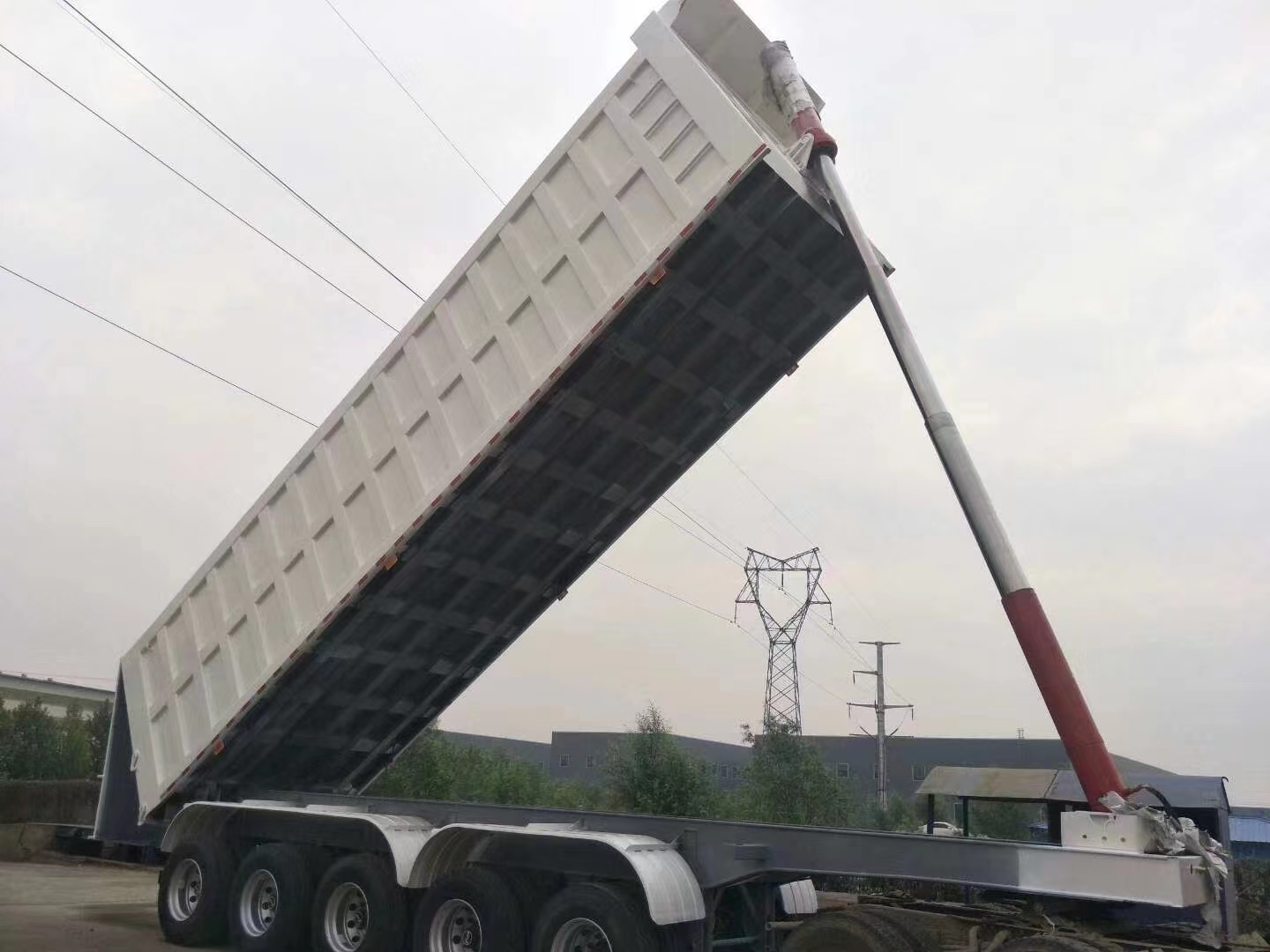

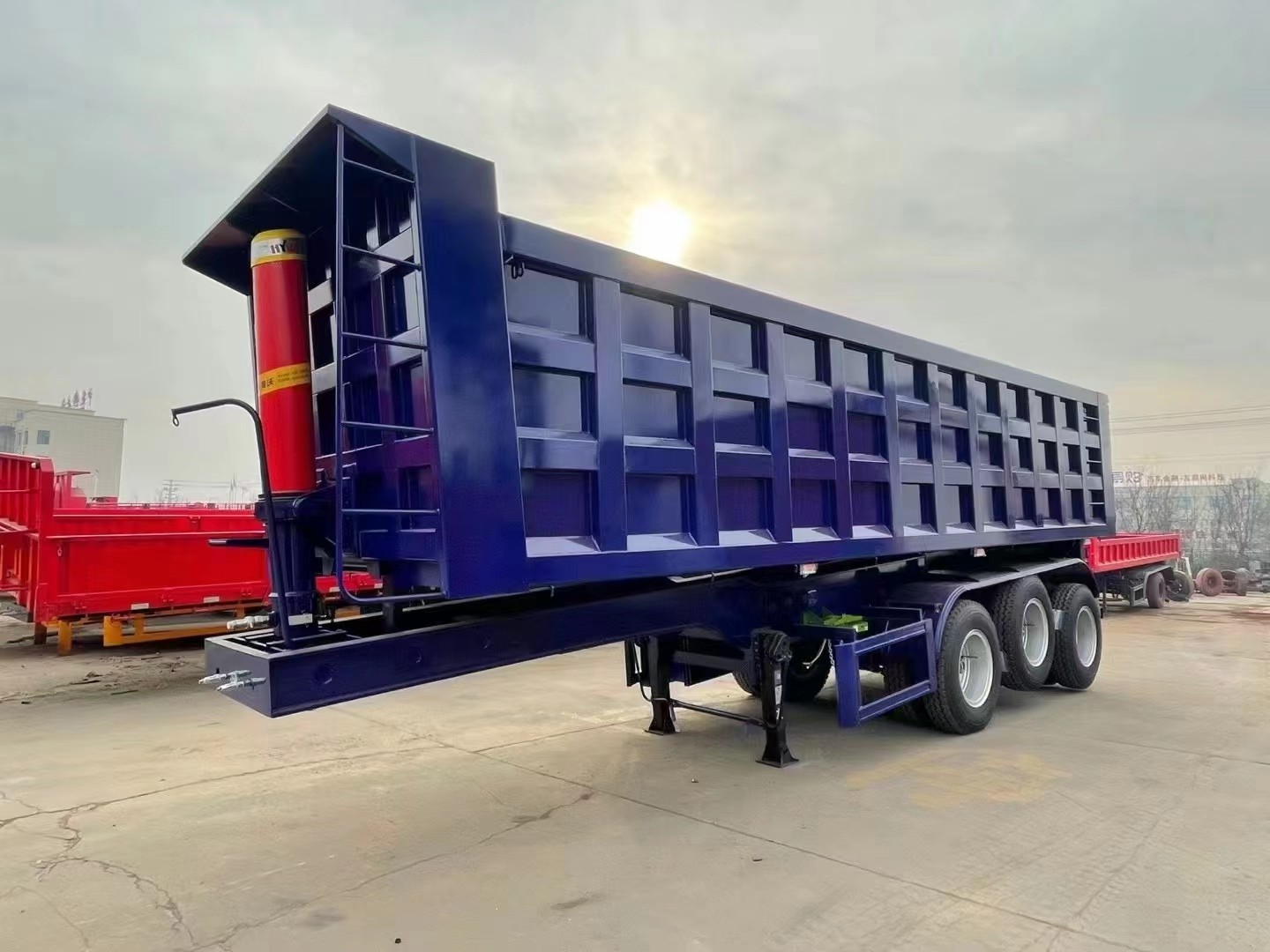

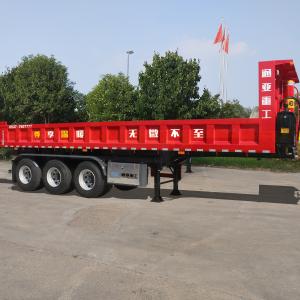

    U-shaped dump semi trailer is used to transport of bulk cargo, coal, ore and build materials. The corner of U-shaped box doesn't exist dead ends, unloading more clean; Adopt T700 High strength plates to lower the tare weight; reduce the damage of ore head on the box; U-shaped structure of the lower center of gravity to avoid the goods spilled.
    Trailer Model
    U-shaped Dump Semi Trailer
    Overall Dimension(L*W*H)(mm)
    9000*2500*3500
    Cargo box dimension
    8500*2300*1500
    Cargo box thickness
    Bottom 6mm, side 4mm
    Axle Brand
    13TON Axle /FUWA/BPW Brand
    Lifting system
    Hydraulic lifting system
    Axle Number
    Three
    Suspension system
    Mechanical Suspension
    Steel Spring
    10/10/10 leaf spring suspension
    The material of Main beam
    The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8mm.
    Tire Type and quantity
    12R22.5 12units Triangle
    Traction Pin
    50MM or 90MM,Jost
    Spare Wheel Bracket
    2 pieces
    Tool Box
    1 Standard
    Landing Gear
    28ton,Jost
    Brake system
    Dual Line braking system
    Brake air chamber
    Six big chamber
    Electrical system
    1. Voltage: 24v
    2. Receptacle: 7 ways (7 wire harness)
    Side Guard
    Tail lamp with turn signal, brake light & reflector,side lamp etc.
    One set 6-core standard Cable.
    As customer’s requirement
    Painting
    Color as customer’s requirement
    Packing
    Unpacked cargo,Polish with wax before shipping
    The size, color and logo can be customized. If you need more details, please contact me. We will supply the best service and price.


    Essential details


    Use:
    Truck Trailer
    Type:
    Semi-Trailer
    Material:
    Steel
    Size:
    9000*2500*3500
    Max Payload:
    >30000 kg
    Place of Origin:
    Shandong, China
    Brand Name:
    Tonghua
    Product Name:
    Dump semi trailer
    Body Dimension:
    9000*2500*3500
    Baseplate:
    Corrugated Steel
    Container Lock:
    Optional
    Color:
    Customers Optional
    Axle:
    OONGHUA, FUWA , BPW, HUAJIN brand,13t/16t/20t Good quality axles
    Suspension:
    Tri-axle 10-pcs leaf spring suspension with equalizer beam
    Ladder:

    Manually operated or Hydraulic type
